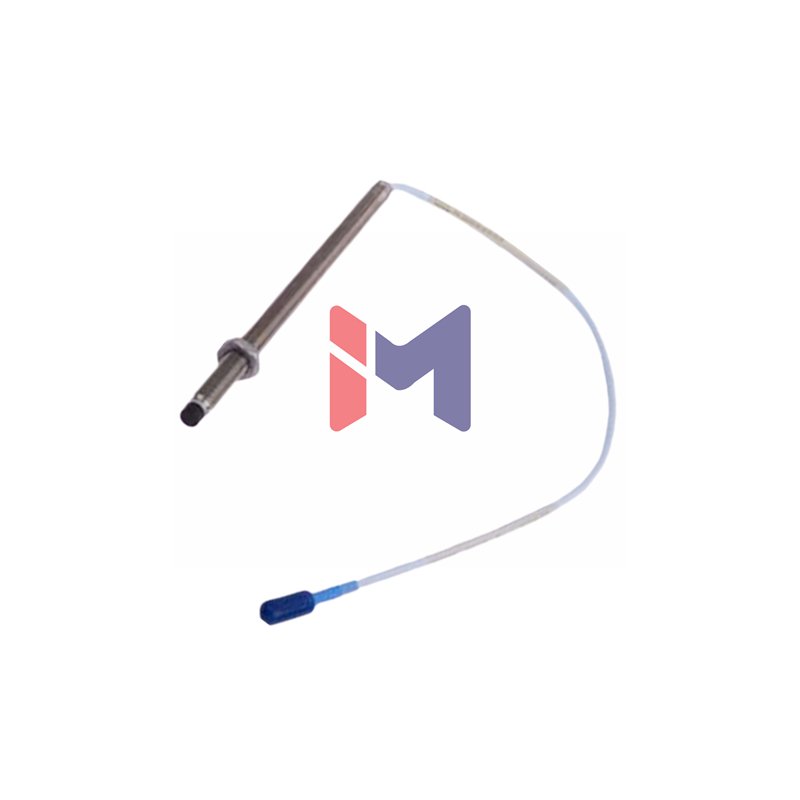

Bently Nevada 3300 NSv Proximity Probe – Premium Vibration Sensing Solution
The Bently Nevada 3300 NSv Proximity Probe (Part Number: 330905-05-10-05-02-00) represents the latest advancement in industrial vibration monitoring technology. This M10x1 threaded probe delivers exceptional accuracy and reliability for critical machinery protection applications. Manufactured by Bently Nevada, this probe combines superior chemical resistance with enhanced performance characteristics.
Complete Product Identification
- Manufacturer: Bently Nevada
- Series: 3300 NSv
- Base Model: 330905
- Full Part Number: 330905-05-10-05-02-00
Configuration Breakdown
- Thread Type: M10x1 without armor
- Unthreaded Length: 50 mm (-05-)
- Case Length: 100 mm (-10-)
- Cable Length: 0.5 meter (-05-)
- Connector Type: Miniature coaxial ClickLoc with standard cable (-02-)
- Agency Approval: Not required (-00-)
Performance Specifications
- Measurement Range: 1.5 mm (60 mils) linear range
- Sensitivity: 7.87 V/mm (200 mV/mil) ±12.5%/-20%
- Linearity: ±0.06 mm (±2.3 mils) deviation from best fit straight line
- Frequency Response: 0 to 10 kHz (±3 dB typical)
- Temperature Range: -52°C to +177°C (-62°F to +351°F)
- Probe Resistance: 4.0 ± 0.5 Ω for 0.5 meter cable
- Target Requirements: Minimum 8.9 mm diameter, recommended 13 mm
- Cable Specifications: 75 Ω coaxial with FEP insulation
Mechanical Properties
- Case Material: AISI 304 stainless steel
- Tip Material: Polyphenylene sulfide (PPS)
- Recommended Torque: Finger tight + 1/4 turn
- Maximum Torque: 0.56 N·m (5 in·lb)
- Bend Radius: 25.4 mm (1.0 in) minimum
- Thread Engagement: Maximum 15 mm
Electrical Characteristics
- Extension Cable Resistance:
- Center conductor: 0.220 Ω/m
- Shield: 0.066 Ω/m
- Capacitance: 69.9 pF/m typical
- Field Wiring: 0.2-1.5 mm² (16-24 AWG) shielded triad cable
- Maximum Wiring Distance: 305 meters (1000 feet)
Packaging & Delivery
- Condition: New original factory packaging
- Shipping: FedEx, UPS, DHL express available
- Warranty: 12 months warranty
Comparison With Similar Models
- Compared to 330905-05-08-05-12-00: This model features 100 mm case length vs 80 mm, and standard cable instead of FluidLoc cable
- Compared to 330905-05-08-05-01-00: Different connector configuration with standard cable offering
