Description

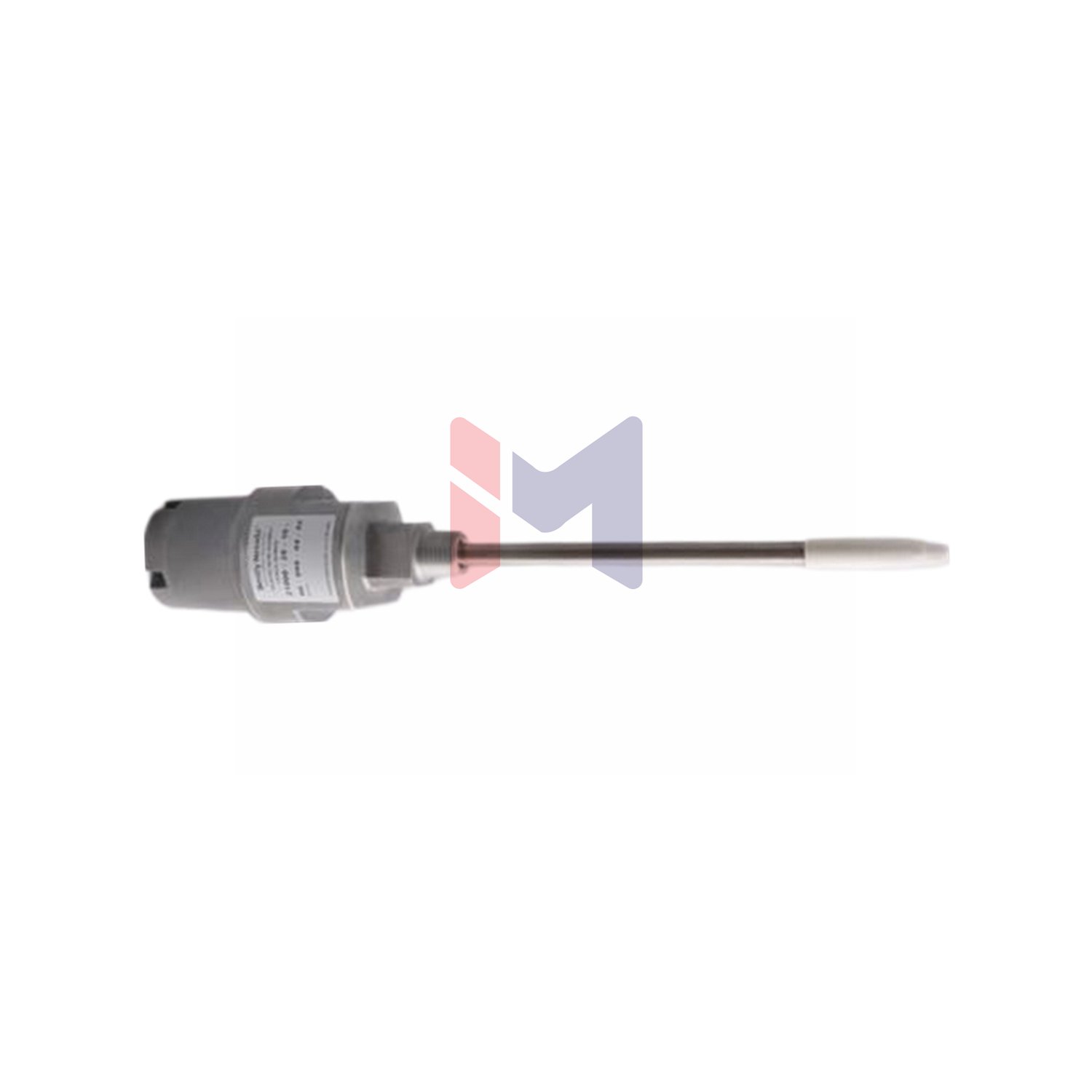

Bently Nevada Explosion-Proof Probe Housing Assembly
Complete monitoring solution with 8mm XL probe for hazardous environments. CSA-certified for critical industrial applications.
Product Identification
- Full Model: 21000-16-05-15-114-03-02
- Type: Proximity Probe Housing Assembly
- Condition: New in factory packaging
Configuration Details
- 21000: Housing base model
- 16: 3300 XL 8mm probe
- 05: 0.5m probe cable (20 in)
- 15: 1.5″ standoff adapter
- 114: 11.4″ probe penetration
- 03: NPT plug & reducer fittings
- 02: 3/4-14 NPT mount
Technical Specifications
- Max Penetration: 13.5″ (34.3 cm)
- Weight: 1.1 kg (2.4 lb)
- Adjustment Range: ±0.5″ (13 mm)
- Material: Aluminum/Stainless Steel
- Temperature Rating: -50°C to +80°C
Installation Notes
- Counterbore required for 1-2″ penetrations
- Sleeve support needed for >12″ penetrations
- Probe P/N visible on flag label
- API 670 compliant design
Certifications
- CSA Type 4 explosion-proof
- Class I Div 1 & 2 (Groups C,D)
- Class II Div 1 & 2 (Groups E,F,G)
- RoHS Directive 2011/65/EU
- FCC Part 15 compliant
Packaging & Support
- 12-month manufacturer warranty
- FedEx/UPS/DHL global shipping
- Hazardous area approved
Frequently Asked Questions
- Q: What’s included in the assembly?
A: Housing, probe, fittings, seals and adapters - Q: Cable length options?
A: 0.5m (this model), 1m, 5m, 9m - Q: Suitable for outdoor use?
A: Yes – Type 4 rated enclosure - Q: Maximum temperature limit?
A: T4 rating up to 80°C ambient - Q: Lead time for orders?
A: Ships within 3 business days
