Description

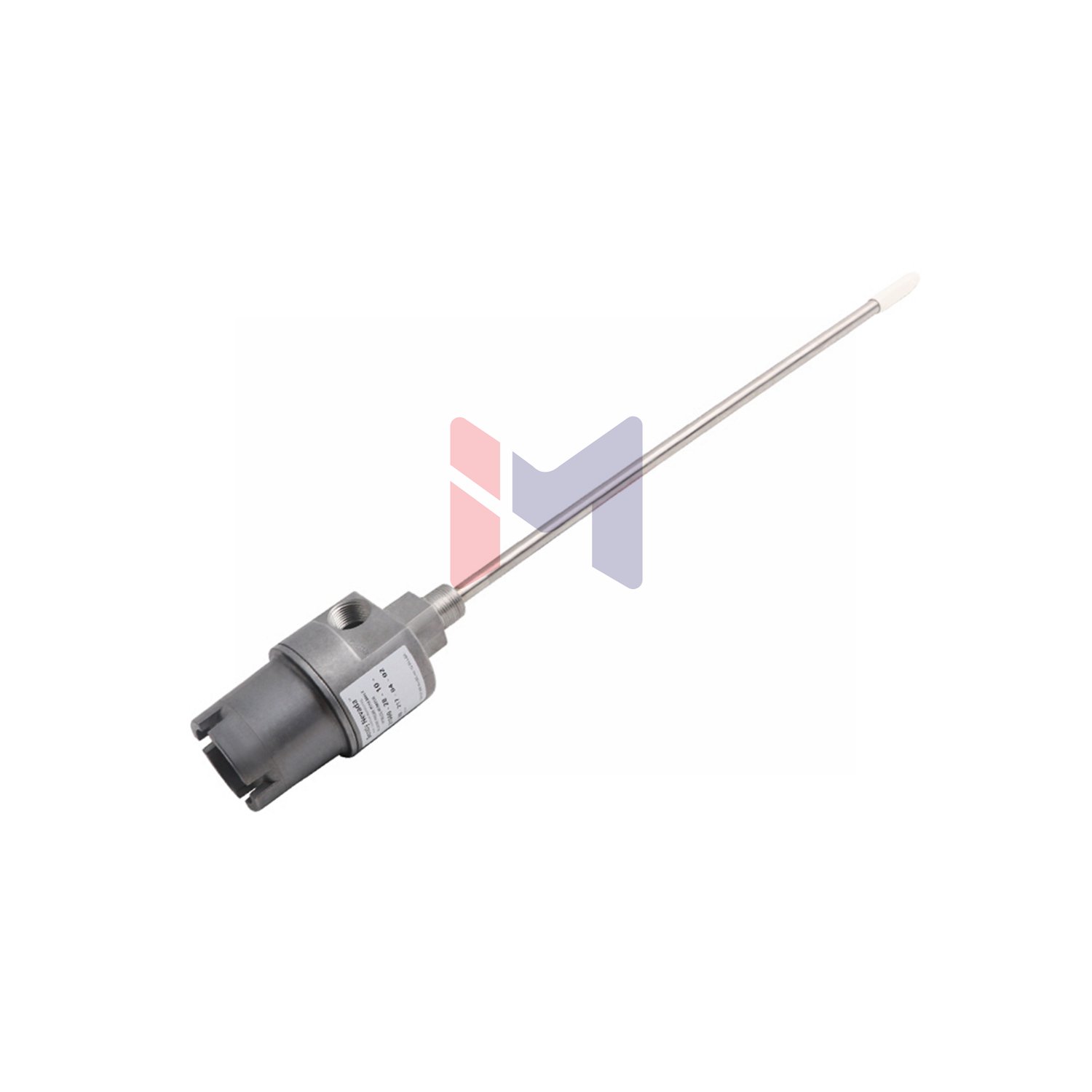

Bently Nevada Direct-Mount Probe Housing – Hazardous Area Certified
Configuration Highlights
Compact explosion-proof housing for 8mm probes with 9.4″ direct penetration. No standoff adapter needed. Aluminum body with stainless steel sleeve. CSA-certified for dangerous environments.
Product ID Breakdown
Complete number: 21000-16-05-00-094-03-02
- 16: 8mm XL probe with connector
- 05: 20″ cable length
- 00: No standoff adapter
- 094: 9.4″ probe reach
- 03: NPT fittings + cable seals
- 02: 3/4-14 NPT thread
Critical Measurements
- Total Penetration: 9.4 inches
- Max Without Support: 12 inches
- Weight: 1.1 kg (unfitted)
- Temp Range: -50°C to +80°C
- Cable Entry: 3 size options
Installation Notes
- Counterbore needed for 1-2″ installations
- Support sleeve required over 12″ depth
- ±0.5″ adjustment possible
- Reverse-mount probe included
Materials & Build
- Main Body: Aluminum
- Sleeve: 304 Stainless Steel
- Seals: High-temp O-rings
Safety Certifications
- CSA Type 4 explosion-proof
- Class I Div 1/2 Groups C/D
- Class II Div 1/2 Groups E/F/G
- FCC Part 15 compliant
- RoHS compliant
Package Contents
- Housing with dome cover
- 8mm XL probe (reverse mount)
- 3/4-14 NPT plug and reducer
- 3-size cable seal kit
- O-rings and thread seal
Key Questions
Q: What does “00” suffix mean?
No standoff adapter – direct mounting
Q: Cable length options?
0.5m standard (20 inches)
Q: Weather resistance rating?
Type 4 enclosure – rain/snow proof
Q: Suitable for coal mines?
Yes, Class II Group F certification
Q: Probe visibility?
Serial number not visible at this length
Warranty & Shipping
New factory-packed with 12-month warranty. Ships worldwide via DHL/FedEx/UPS. Weight: 1.1kg.
