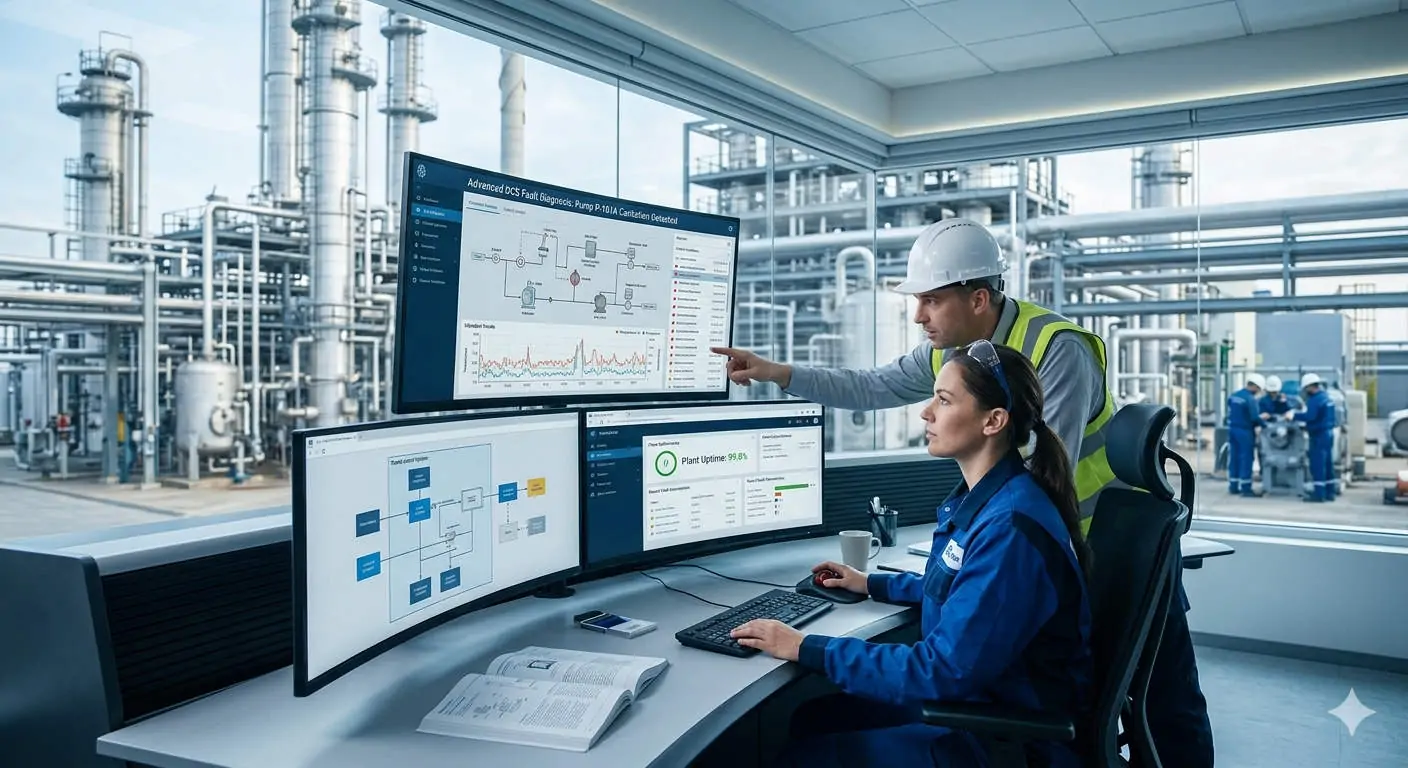

Optimizing Industrial Reliability with Advanced DCS Fault Diagnosis Displays
In high-stakes industrial automation, a fault diagnosis display serves as the critical nerve center for DCS and SCADA systems. This interface aggregates alarms, event logs, and system health metrics into a single, actionable view. Its primary goal remains simple: drastically reducing the time between a fault occurrence and the operator’s corrective response.
The Strategic Importance of Real-Time Diagnostic Visibility
Industries like petrochemicals and pharmaceuticals face massive financial losses during unexpected downtime. Often, every minute of lost production costs thousands of dollars. A centralized diagnostic screen allows operators to distinguish between field instrument failures, controller logic errors, or network issues. Therefore, this visibility eliminates blind troubleshooting and ensures continuous manufacturing stability.
Mastering Alarm Response Time and Screen Refresh Rates
High-performance diagnostic screens must provide data updates in less than one second. During fast-paced process upsets, such as pressure spikes in a refinery, slow refresh rates can mislead the crew. For instance, a delay of just three seconds might cause an operator to miss a critical trip condition. Consequently, maintaining sub-second latency is vital for plant safety and operational integrity.
Precision Time Synchronization and Deep Event Logging
Modern control systems require millisecond-level timestamping synchronized via Network Time Protocol (NTP) servers. Accurate sequencing is essential for root cause analysis during cascading faults. If a valve failure triggers a pump trip, synchronized logs reveal the exact order of operations. Without this precision, troubleshooting becomes mere guesswork, which risks further equipment damage.
Unified Visibility Through Multi-Protocol Compatibility
Effective diagnosis requires aggregating data across diverse layers like Modbus TCP, OPC UA, and proprietary DCS networks. In mixed-vendor environments, fragmented diagnostics often lead to human error. Operators should not have to switch between different interfaces to understand a single process event. Integrated protocol support directly enhances situational awareness and overall factory automation efficiency.
Optimizing Network Segmentation for Seamless Performance
Network congestion often causes lag in diagnostic displays, particularly in Honeywell DCS or similar large-scale deployments. I recommend separating control traffic from monitoring data using dedicated VLANs or industrial switches. This prevents bandwidth bottlenecks during peak load conditions. As a result, critical alarm propagation remains instantaneous even during complex system upsets.
Ensuring Audit Compliance and Failover Redundancy
Regulatory standards like FDA 21 CFR Part 11 demand strictly accurate audit trails in pharmaceutical sectors. During commissioning, you must validate NTP settings across all controllers and servers to prevent timestamp drift. Furthermore, never assume redundancy works without rigorous testing. Always simulate server failures to confirm that historical alarm data remains accessible during a switchover.
Technical Implementation Checklist
- ✅ Validate NTP Sync: Check time synchronization across all nodes during the initial commissioning phase.
- ⚙️ Network Hardening: Use managed industrial switches to prioritize diagnostic traffic over standard office data.
- 🔧 Redundancy Testing: Perform quarterly failover drills to ensure the backup diagnostic server captures all events.
- 📊 Protocol Bridging: Deploy OPC UA gateways if integrating legacy PLC hardware with modern SCADA platforms.
PLC Pioneer’s Expert Commentary
“In my years of field experience, the most effective plants are those that treat the diagnostic screen as a decision-making tool, not just a monitor. Many engineers overlook the importance of ‘Alarm Philosophy’—if your screen shows 100 alarms at once, it is effectively useless. I suggest prioritizing critical safety interlocks to prevent operator cognitive overload. True efficiency comes from clarity, not just more data.” — PLC Pioneer
Frequently Asked Questions (FAQ)
Q: How do I know if my current diagnostic interface is obsolete?
If your Mean Time to Repair (MTTR) is rising because operators are manually cross-referencing multiple screens, your system lacks integration. Modern systems should provide a ‘First-Out’ alarm feature to pinpoint the original cause of a shutdown immediately.
Q: Can third-party diagnostic tools work with proprietary DCS brands?
Yes, provided the DCS supports an OPC UA or Modbus gateway. However, some deep hardware-level diagnostics (like backplane errors) might remain restricted to the original manufacturer’s software. Always verify the ‘tag mapping’ capabilities before purchasing.
Q: What is the best way to handle ‘Chattering’ alarms on a diagnostic screen?
We recommend implementing deadbands and delay timers within the controller logic. This prevents a fluctuating signal from flooding the screen with repetitive entries, which ensures that the operator focuses on genuine process deviations.
Industrial Solution Scenario: The Refinery Pump House
In a large refinery, a sudden vibration increase on a main transfer pump could trigger a cascade of safety shutdowns. A well-configured fault diagnosis display immediately highlights the vibration sensor as the ‘First-Out’ event. This allows the maintenance team to inspect the pump bearings directly, rather than wasting hours checking the downstream valves or the motor starter logic.
