Understanding GE EX2100 and DCS Integration in Industrial Automation
Industrial automation heavily relies on seamless communication. The GE EX2100 Excitation Control System is a critical component. It manages generator excitation effectively. Distributed Control Systems (DCS) oversee overall plant operation. Integrating these two systems is essential. This link allows for centralized monitoring and control. Furthermore, it ensures system stability and efficiency. Successful integration is key to modern factory automation.
Key Communication Protocols for EX2100 to DCS Interfacing
- Modbus TCP/IP is a very common choice.
- GE often uses its proprietary protocol, Mark VIe.
- OPC Unified Architecture (OPC UA) offers robust interoperability.
- Selecting the right protocol is crucial.
- Therefore, system requirements must dictate the choice.
- Data speed and security are major considerations.
- Protocol standardization simplifies future expansions.
Hardware and Network Configuration for Reliable Data Exchange
- Network infrastructure must be robust and redundant.
- A dedicated industrial Ethernet network is recommended.
- Media converters might be necessary for different interfaces.
- Signal isolation protects both the EX2100 and the DCS.
- Moreover, precise IP addressing prevents network conflicts.
- Technicians must perform thorough system testing.
The Role of System Integration Engineers in Control Systems
System integration engineers are vital to this process. They possess specialized knowledge of both systems. These experts define the data mapping strategy. They configure the communication drivers accurately. Furthermore, they troubleshoot any interface issues. Their expertise ensures optimal control systems performance. Experience with GE Excitation is highly valuable.
Implementing Data Mapping and Scaling for Seamless Control
- Data mapping translates GE EX2100 parameters.
- These parameters become usable DCS tags.
- Scaling ensures numerical values are correctly interpreted.
- For instance, an analog voltage might represent a specific current.
- Precise mapping prevents control errors.
- Therefore, careful documentation of all tags is mandatory.
- This step enhances system maintainability significantly.
Enhancing System Reliability Through Redundancy and Cybersecurity
- Redundancy in communication links is paramount.
- Dual network paths prevent single points of failure.
- Hot standby configurations offer maximum uptime.
- Cybersecurity measures are increasingly important.
- Therefore, network segmentation protects critical control assets.
- Strong authentication prevents unauthorized access attempts.
- Reliability is non-negotiable in industrial automation.
Author’s Insight: The Trend Towards Standardized Industrial Automation
The trend clearly favors open communication standards. Proprietary protocols can limit flexibility. OPC UA adoption offers significant advantages. It streamlines integration across various vendors. Moreover, standardization reduces long-term maintenance costs. Companies should prioritize protocols with strong industry backing. This forward-looking approach benefits future upgrades.
Application Case: DCS Monitoring of Generator Excitation

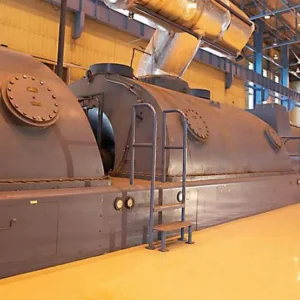

Consider a power generation facility. The DCS monitors EX2100 status variables. These include field current, voltage, and limits. The operator can remotely adjust setpoints. This remote control capability improves response time. As a result, plant stability is significantly enhanced. This integrated approach optimizes power output management.
Explore PLC Pioneer Limited’s GE Excitation Control Solutions
Achieving flawless GE EX2100 and DCS communication requires quality components. PLC Pioneer Limited offers reliable spare parts and solutions. Click here to view our full product catalog and enhance your control systems integration.
Key GE EX2100 Module Comparison
| Module | Description | Core Function | Best For |
| IS200EGDMH1A | Excitation Gate Driver Module | Controls IGBT firing signals for the SCR/IGBT bridge. | Driving the power electronics stage. |
| IS200EMIOH1A | Excitation Main Input/Output Board | Provides I/O for sensors, control signals, and feedback. | Core analog and digital signal processing. |
| IS200ESELH3A | Excitation Static Switch Module | Controls the static switch operation for fast de-excitation. | High-speed protection and emergency shutdown. |
| IS200EISBH1A | Excitation Interface Support Board | Provides additional communication ports and interface circuitry. | Enhanced system connectivity and diagnostics. |
Selection Guidance
For a basic setup, the IS200EMIOH1A is central for I/O and control. If you require advanced gate control, the IS200EGDMH1A is essential. The IS200ESELH3A provides critical safety functionality. Choose the IS200EISBH1A for expanded communication needs.
