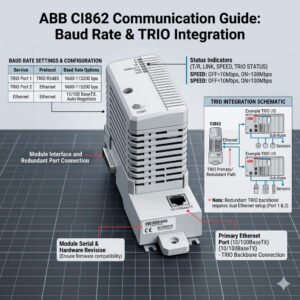

Understanding the ABB CI862 Communication Interface: Performance Beyond Baud Rates
When searching for the maximum communication baud rate of the ABB CI862 interface module, many engineers encounter a “not specified” entry in official AC 800M hardware selectors. This absence of a fixed value is not an oversight by ABB. Instead, it reflects the specialized nature of the TRIO/Genius I/O network. Unlike standard Modbus or RS-485 devices, the CI862 operates within a deterministic LAN architecture where performance depends on system timing rather than a user-selectable serial speed.
Strategic Importance in DCS Modernization
The CI862 module serves as a critical bridge for brownfield industrial automation projects. It allows facilities to integrate legacy TRIO/Genius remote I/O islands into modern ABB Ability System 800xA environments. By preserving existing field infrastructure, petrochemical and power generation plants can upgrade their control layers without massive rewiring. Consequently, this migration path significantly reduces downtime during critical facility turnarounds.
Technical Architecture: Deterministic I/O vs. Serial Speed
Traditional serial cards rely on configurable baud rates to manage data throughput. However, the CI862 integrates directly into the CEX-Bus of the AC 800M controller. The TRIO LAN timing governs communication, making standard baud rate concepts irrelevant. In practical DCS engineering, system responsiveness depends more on your I/O scan configuration and total network load. Therefore, optimizing the controller task intervals often yields better results than seeking higher transmission speeds.
System Capacity and Operational Reliability
A single CI862 module can manage up to 30 TRIO blocks, with a maximum of 1,000 I/O points supported per AC 800M controller. At PLC Pioneer, we have observed that pushing these limits in refinery applications can lead to latency during massive alarm bursts. We recommend segmenting critical interlocks and process loops across multiple CI862 modules. This strategy maintains deterministic performance and prevents network congestion during abnormal plant conditions.
Maximizing Uptime via Redundancy and Hot Swap
For continuous-process industries, the CI862’s support for CEX module redundancy is its most valuable feature. In high-availability environments like boiler management or compressor stations, communication failure is not an option. Redundant CI862 pairs allow for hot-swapping hardware without interrupting field I/O. As a result, maintenance teams can replace faulty modules during live production, avoiding expensive unplanned trips.
Field Installation: Managing Shielding and Vibration
TRIO/Genius networks are notably sensitive to electromagnetic interference, particularly near Variable Frequency Drives (VFDs). During commissioning, our engineers often find intermittent faults caused by improper grounding. We suggest utilizing single-point grounding to ensure stability in high-noise MCC rooms. Furthermore, in high-vibration areas like mining plants, use thread-lock fasteners on DB9 connectors to prevent random communication dropouts over time.
Optimizing Network Margin for Long-Term Maintenance
While theoretical limits allow 30 blocks per segment, experienced integrators rarely design at 100% capacity. We suggest maintaining a 20% to 30% communication margin on every TRIO segment. This buffer allows for future expansion and ensures that diagnostic tools have enough bandwidth to function during troubleshooting. Prioritizing network headroom over raw speed creates a much more resilient industrial control system.
—
CI862 Implementation Best Practices
- ✅ Verify Firmware: Ensure AC 800M firmware is compatible with legacy Genius block revisions before migration.
- ⚙️ Network Segmentation: Isolate high-speed analog loops from non-critical digital status signals.
- 🔧 Physical Security: Apply strain relief and secondary cable fixation in high-vibration environments.
- 📊 Capacity Planning: Limit critical segments to 20 blocks to guarantee deterministic I/O updates.
—
PLC Pioneer’s Expert Commentary
“In the world of industrial automation, we often get distracted by ‘maximum speeds.’ For the ABB CI862, the real metric is stability. This module is an engineering masterpiece for legacy integration, but its success depends entirely on physical layer quality. If your shielding is poor, even the fastest theoretical bus speed won’t save your process from a trip. In my view, the CI862 is about reliability and longevity, not just data throughput.” — PLC Pioneer
Frequently Asked Questions (FAQ)
Q: Why doesn’t ABB publish a baud rate for the CI862?
The TRIO protocol uses a proprietary Manchester-encoded signal where the frequency is fixed by the TRIO LAN hardware. It is not a user-adjustable parameter like standard RS-232/485 serial ports.
Q: Can I replace a failed CI862 while the AC 800M controller is running?
Yes, the CI862 supports hot-swap functionality on the CEX-Bus. However, you must ensure the system is configured for redundancy to avoid losing communication with the field devices during the swap.
Q: Is the CI862 recommended for greenfield (new) projects?
Unless you are specifically matching existing TRIO infrastructure, we recommend Ethernet-based I/O solutions like PROFINET or EtherNet/IP for new builds. These offer easier diagnostics and higher scalability compared to legacy TRIO networks.
—
Application Scenario: Chemical Plant Migration
A major chemical processor recently upgraded their legacy Honeywell systems to ABB 800xA. By utilizing the CI862, they successfully integrated 500+ existing TRIO I/O points without pulling a single new field cable. This approach saved the client approximately 40% in installation costs and reduced the planned shutdown window by four days.
