Maximizing Process Intelligence: A Guide to ABB AI950N Transparent HART Transmission

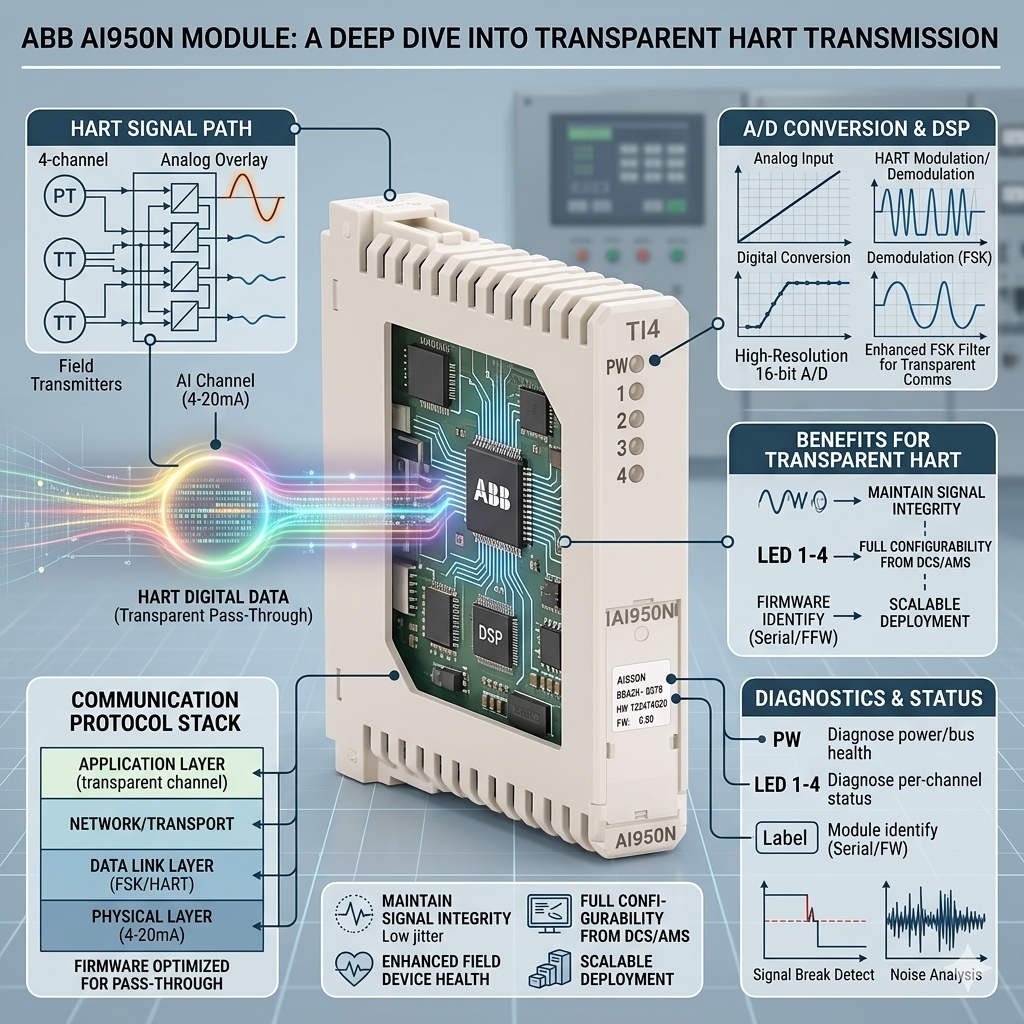

The ABB AI950N analog input module serves as a critical bridge in modern industrial automation. It supports transparent HART communication, allowing digital diagnostic data to travel alongside standard 4–20 mA signals. Consequently, engineers can access real-time device health without disrupting primary control loops. This capability transforms simple measurements into actionable intelligence for sophisticated Distributed Control Systems (DCS).
Strategic Advantages of HART Connectivity in Modern Plants
In high-stakes environments like petrochemical or pharmaceutical facilities, data visibility is paramount. The AI950N eliminates the need for expensive external multiplexers or complex HART gateways. As a result, maintenance teams can monitor sensor drift and calibration status remotely. This centralized approach significantly reduces the time technicians spend in hazardous or remote areas of the plant.
Unlocking Predictive Maintenance through Technical Transparency
The standout feature of the AI950N is its ability to pass Frequency Shift Keying (FSK) digital signals without interference. Moreover, this transparency enables Asset Management Systems (AMS) to communicate directly with smart transmitters. By leveraging these insights, plants can shift from reactive repairs to data-driven predictive maintenance. This shift often results in a measurable reduction in unplanned downtime and operational costs.
Precision Performance and Signal Integrity Requirements
Process stability relies on the accuracy of analog signals. The AI950N provides the high-resolution input necessary for demanding PID control loops. Furthermore, its industrial isolation design protects sensitive electronics from electromagnetic interference (EMI). In environments with large motors or turbines, this robust design prevents grounding noise from corrupting critical process variables.
Field-Proven Installation and Maintenance Strategies
Successful deployment of HART-enabled modules requires attention to physical layer details. For instance, insufficient loop resistance often causes digital communication failures even when the analog signal seems perfect. In my experience at PLC Pioneer, ensuring a minimum loop resistance of 250 Ω is non-negotiable. Additionally, technicians must adhere to strict single-point grounding rules to avoid intermittent signal drops.
PLC Pioneer’s Expert Commentary: The Future of Hybrid I/O
“While many companies chase full fieldbus architectures, the AI950N represents a highly practical ‘middle ground.’ It allows brownfield plants to modernize their diagnostics using existing 4–20 mA wiring. However, I always advise clients to verify firmware compatibility before large-scale rollouts. Smart hardware is only as effective as the software integration that supports it.” — PLC Pioneer
—
Technical Implementation Checklist
- ✅ Verify Loop Impedance: Ensure a total resistance of 250 to 1100 Ohms for reliable HART modulation.
- ⚙️ Check Shielding: Terminate cable shields at the control cabinet side only to prevent noise loops.
- 🔧 Environmental Protection: Install dedicated surge protectors for modules connected to outdoor field instruments.
- 📊 Firmware Sync: Confirm that your DCS controller and AI950N versions support the specific HART revision of your devices.
—
Frequently Asked Questions
Q: Why does my analog signal work while HART diagnostics fail?
This usually stems from excessive capacitance in long cable runs or insufficient loop resistance. HART communication requires a specific impedance range to “hear” the digital pulse superimposed on the analog current. Adding a 250 Ω resistor often resolves this immediately.
Q: Can the AI950N handle different brands of transmitters simultaneously?
Yes. Because the transmission is “transparent,” the module does not care about the manufacturer. However, your asset management software must have the correct Device Description (DD) or DTM files to interpret the data from various vendors.
Q: Is there a distance limit for HART communication with this module?
Yes. While the 4–20 mA signal can travel far, high cable capacitance can attenuate the HART digital signal over long distances. For runs exceeding 1,000 meters, we recommend using low-capacitance twisted-pair cables to maintain signal integrity.
Solution Scenario: The Refinery Upgrade
A major refinery recently utilized AI950N modules to upgrade their distillation column monitoring. By enabling HART transparency, they identified two failing pressure transmitters before they reached a critical state. This prevented a potential emergency shutdown, saving the facility an estimated $200,000 in lost production time. This case demonstrates that the AI950N is more than just an I/O module; it is a vital tool for plant reliability.
